Karinear 36" 4 Burner Downdraft Electric Cooktop with Vent 7400W
【Cook Without an Overhead Hood】The Karinear 36 Inch Downdraft Electric Cooktop is a 7400W, 4-zone radiant ceramic cooktop with integrated ductless ventilation for kitchen islands and open-concept kitchens..The built-in downdraft system pulls smoke, steam, and cooking odors downward while you cook, so the space above your cooktop stays open and uncluttered. It’s a great fit for modern kitchens, islands, and remodels where clean sightlines matter.
【9-Speed Downdraft Ventilation with Ductless Filtration】Adjust the airflow to match what you’re cooking with 9 fan speed settings and a 150W ventilation motor. Aluminum grease filters and activated charcoal filtration help capture grease, smoke, and odors before recirculating cleaner air back into the kitchen. Because the system is designed for ductless operation, there’s no need to route an external vent through a wall or ceiling, giving you more flexibility when planning your kitchen layout.

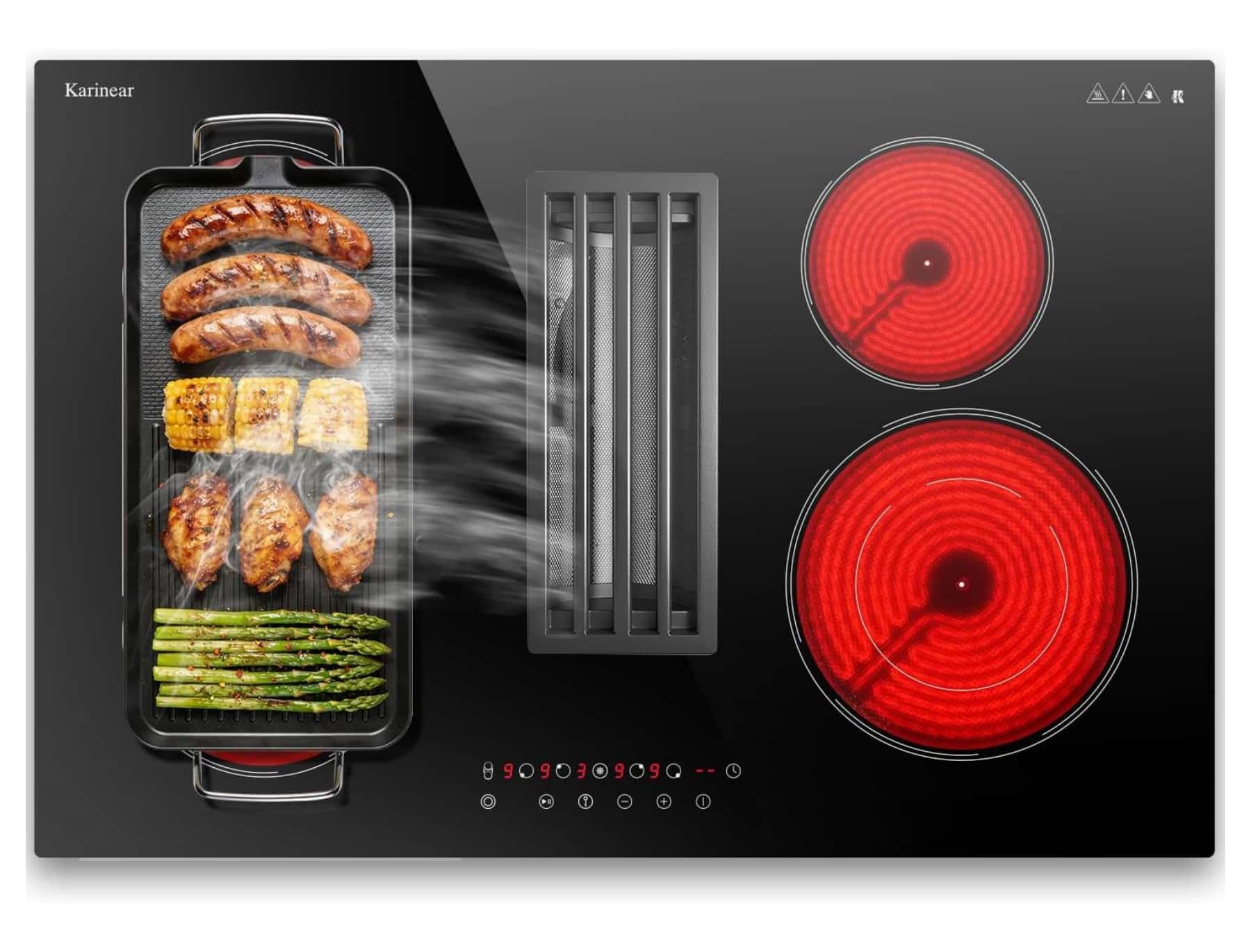

【Flexible Cooking for Large Pots, Griddles & Family Meals】With four cooking zones and up to 7400W of total cooking power, there’s plenty of space for everyday meals and larger family dinners. The BBQ Bridge function combines the two left heating zones into one large 3900W cooking area, ideal for griddles, oversized pans, and longer cookware, while the expandable dual-ring burner on the right delivers up to 2300W and adjusts to different pan sizes for more efficient heating.
| Product Specifications | |
|---|---|
| Stovetop Dimensions (L×W×H) | 35.43" × 20.47" × 7.87" (900mm × 520mm × 200mm) |
| Required Cut-out Size (A×B) |
Built-in Cutout 34.25" × 19.30" (870mm × 490mm) |
| Installation Type | Built-In / Drop-In (Ideal for Kitchen Islands & Open Countertops) |
| Total Power Output | 7400W Max Output |
| Burner Power Breakdown |

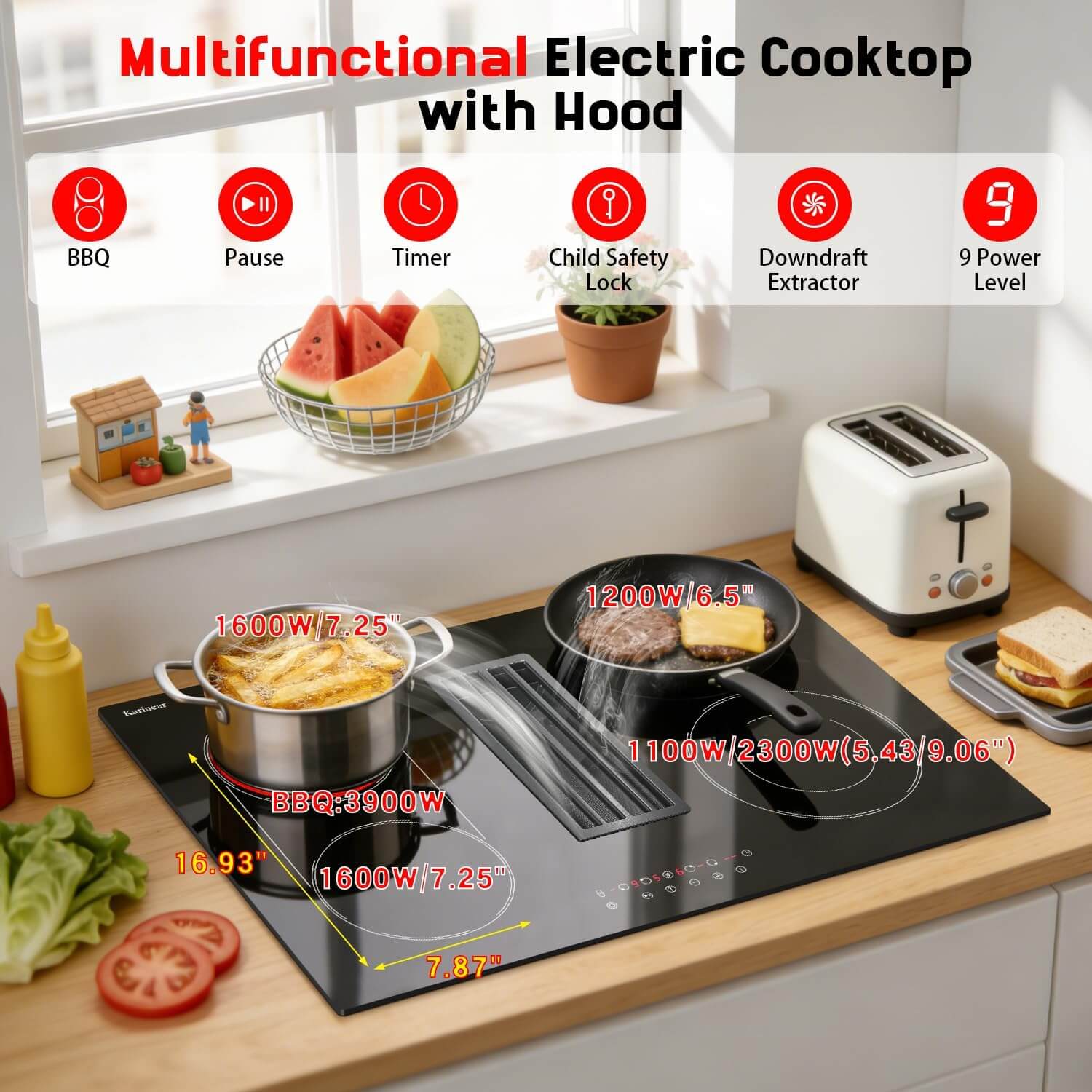

• Front Left Zone: 1600W • Rear Left Zone: 1600W • Front Right Zone: 1200W • Rear Right Zone: 1100W / 2300W (Dual Ring) |
| Special Heating Mode | 3900W BBQ Bridge Zone (Front Left + Rear Left) |
| Supply Voltage & Amperage |

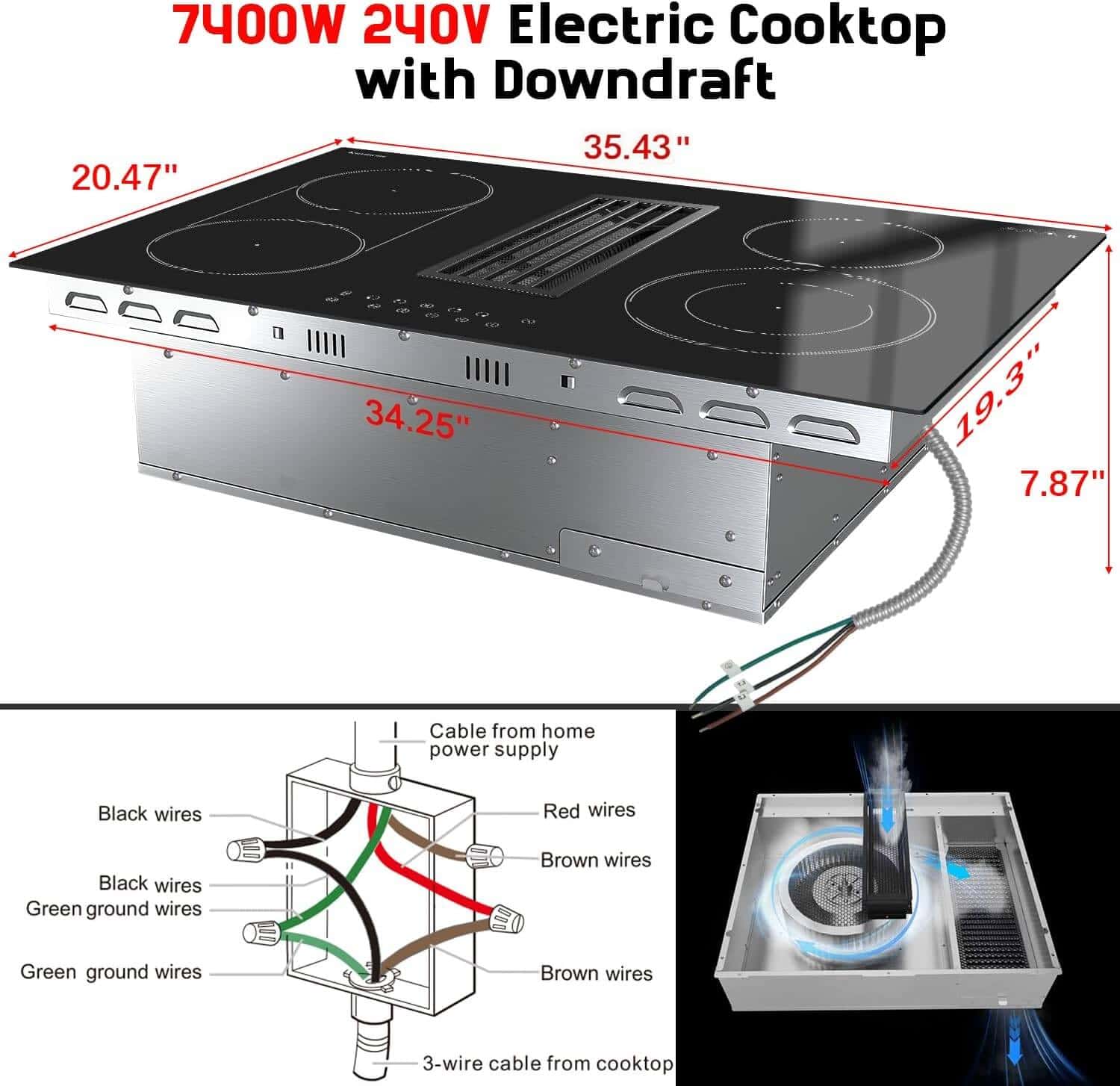

220–240V~ / 50–60Hz (Hardwired Connection) Amperage: 32 Amps |
| Ventilation System | Integrated Center Downdraft Exhaust System |
| Noise Level | ≤ 50 dB(A) Ultra-Quiet Operation |

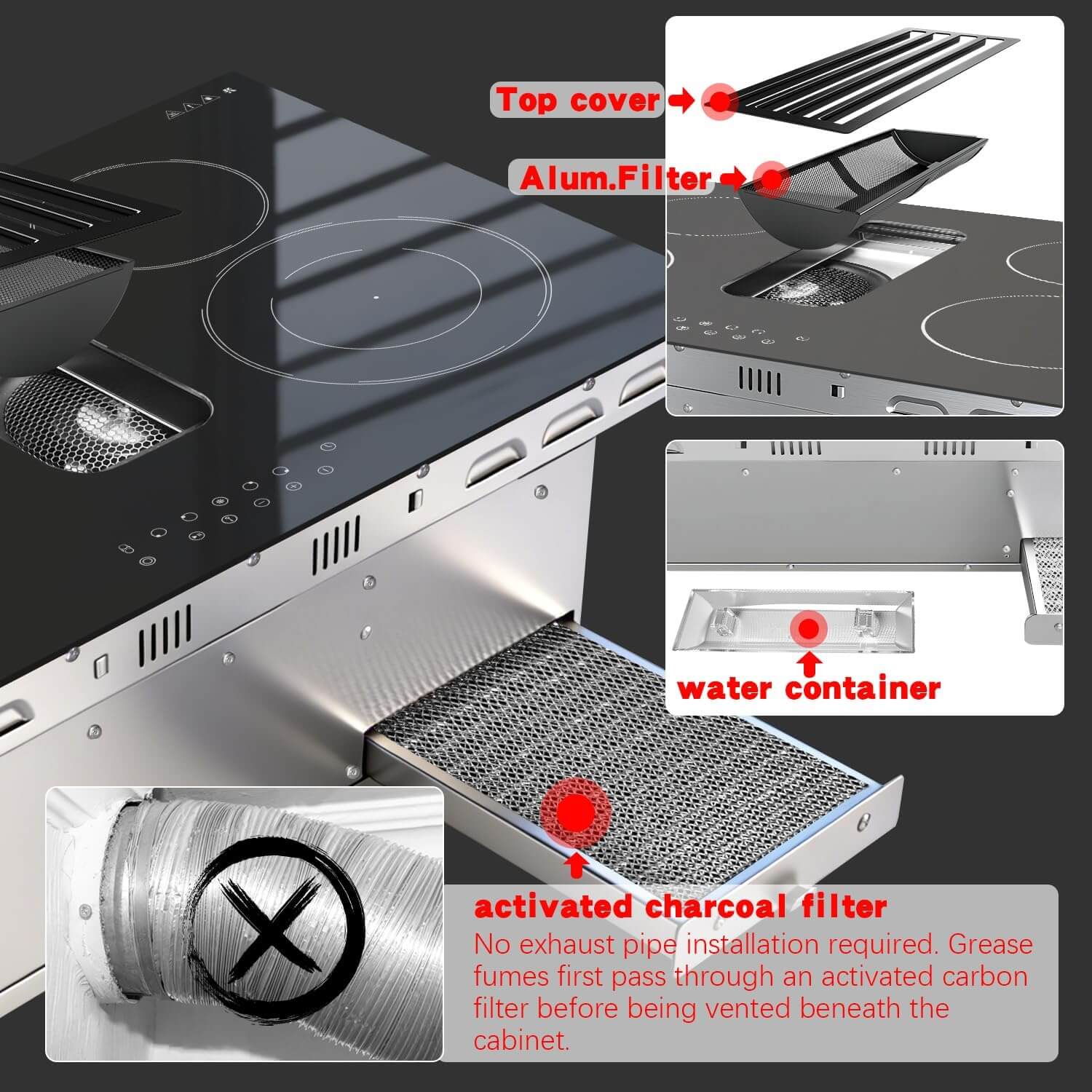

| Filtration System | Ductless / Ventless Recirculation Aluminum Grease Filter Activated Charcoal Filter |
| Control System | Precision Digital Sensor Touch Control Panel (9 Power Levels) |
| Convenience Features | 1–99 Min Intelligent Timer One-Touch Pause Function |
| Safety Features |
Child Safety Lock
Residual Heat Warning Indicator ("H") Over-Temperature Protection Auto Shut-Off Protection |
| Cookware Compatibility | Compatible with All Flat-Bottom Cookware (Stainless Steel, Cast Iron, Glass, Ceramic, Copper, Aluminum) |
| Certifications & Warranty | GS / CE / FCC Certified 3-Year Warranty |
- 1 x Downdraft Electric Cooktop
- 1 x User Manual
- 1 x Scaper
- 1 x Top cover
- 3 x Alum Filter
User Manual: Cilck Here
FAQ
No separate overhead range hood is required. The integrated downdraft system pulls smoke, steam, and cooking odors downward while you cook, helping keep the space above your cooktop open.
No. The Karinear cooktop uses ductless recirculation with aluminum grease filters and activated charcoal filtration, so no external wall or ceiling duct is required.
The cooktop is equipped with a 150W motor and 9-speed fan settings, allowing you to adjust airflow based on your cooking needs.
Yes. It is designed for built-in or drop-in installation and is ideal for kitchen islands and open countertops. The built-in downdraft ventilation eliminates the need for a bulky overhead hood.
The recommended countertop cutout is 34.25" × 19.30" (870 × 490 mm). The overall cooktop measures approximately 35.43" × 20.47" × 7.87".
Yes. This 7400W built-in electric cooktop requires a 220–240V hardwired connection. It does not plug into a standard 120V household outlet, so professional installation is recommended.
The smooth ceramic glass surface can be easily wiped clean with a soft cloth and a dedicated ceramic cooktop cleaner once cooled. The integrated metal grease filter is removable and dishwashable, making maintenance simple and routine.
No. It is a radiant ceramic electric cooktop, so no special induction cookware is required. It works with most flat-bottom stainless steel, cast iron, aluminum, copper, ceramic, and glass cookware.
