Karinear 30 inch electric cooktop 5 Burner With Upgrade Sensor Touch 9000W

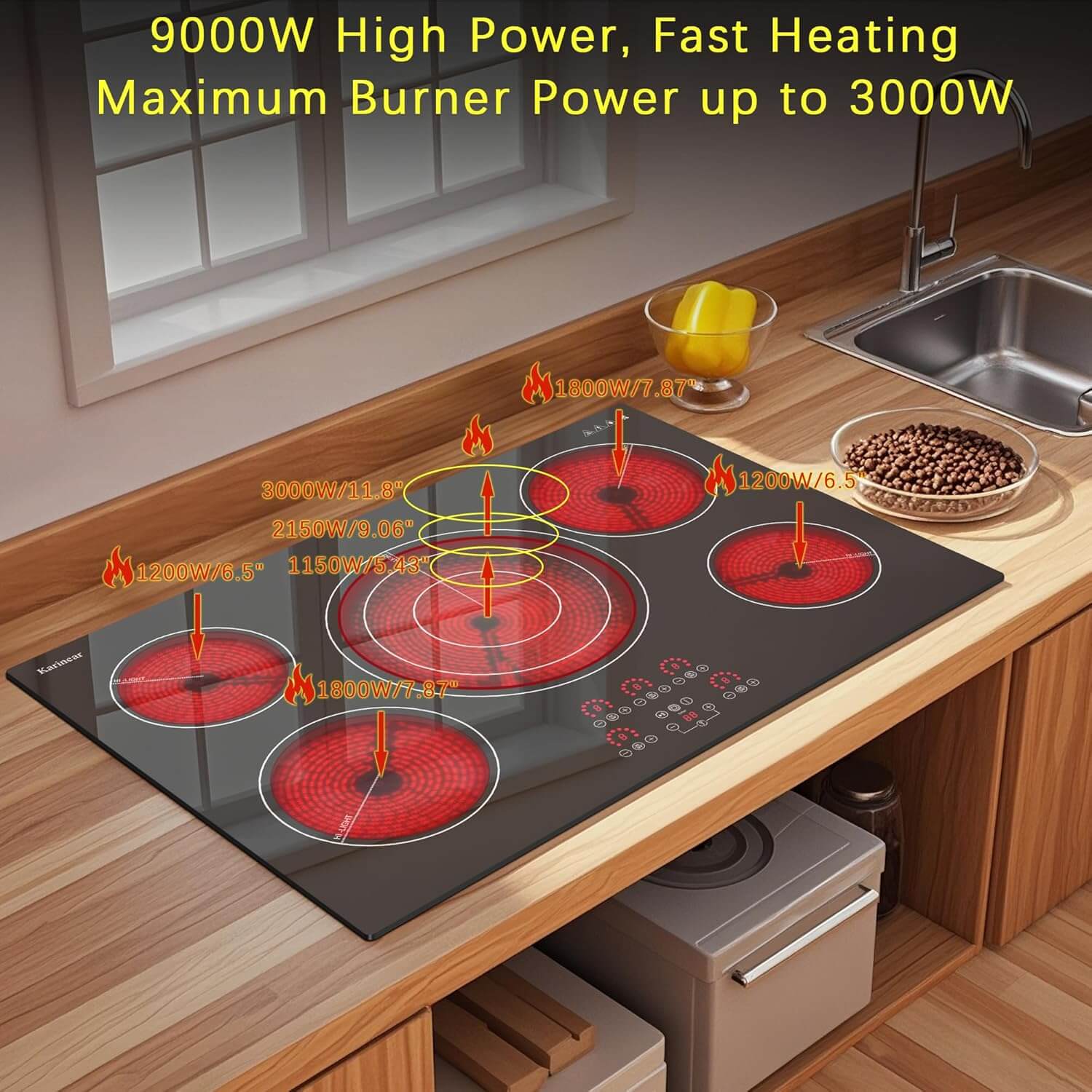

【MAX 9000W High Power】9000W high power electric cooktop has 5 burners,including Triple Zone（1150W/2150W/3000W）+ 2*1800W+ 2*1200W ,heating faster and cooking quickly.The 5 simultaneous burners of the ceramic cooktop use high heat to cook food,heat quickly and saving time and energy.
【30 Inch Electric Cooktop with Versatile Triple-Ring Burner】The innovative expandable triple-ring center burner adjusts to fit small, medium, and large pots & pans, providing flexible cooking space and boosted power when expanded. With rapid heat-up technology, this ceramic glass cooktop saves time and simplifies meal prep. Ideal for busy kitchens, it combines power, precision, and adaptability.
【ETL Certification & Multi Safety Protection】Our Built-in electric range top meets the safety standards of ETL. Also Designed for family safety, this electric glass cooktop includes a child safety lock—easily activated by pressing '+' and '-' simultaneously (display shows "Lo") to prevent accidental use. After cooking, the residual heat indicator flashes "H" to warn when the surface is still hot, keeping you protected from burns.

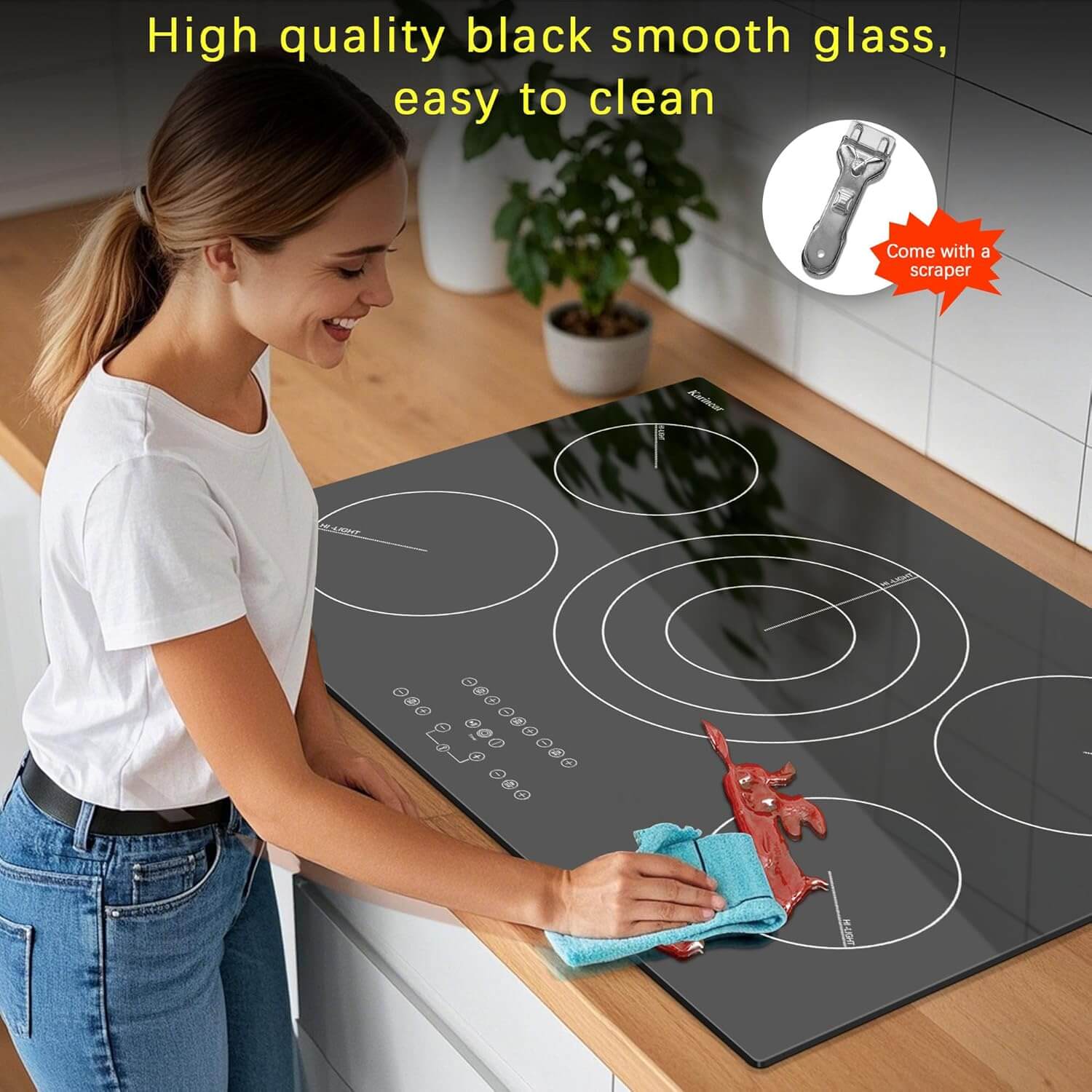

【Universal Compatibility & Hassle-Free Cleaning】This 5-burner electric cooktop, compatible with all cookware types—iron, aluminum, stainless steel, ceramic, and glass.The sleek black ceramic glass surface not only elevates your kitchen’s style but also makes cleanup effortless. A simple wipe with a damp cloth removes most spills, while the included cleaning squeegee tackles tougher stains with ease.

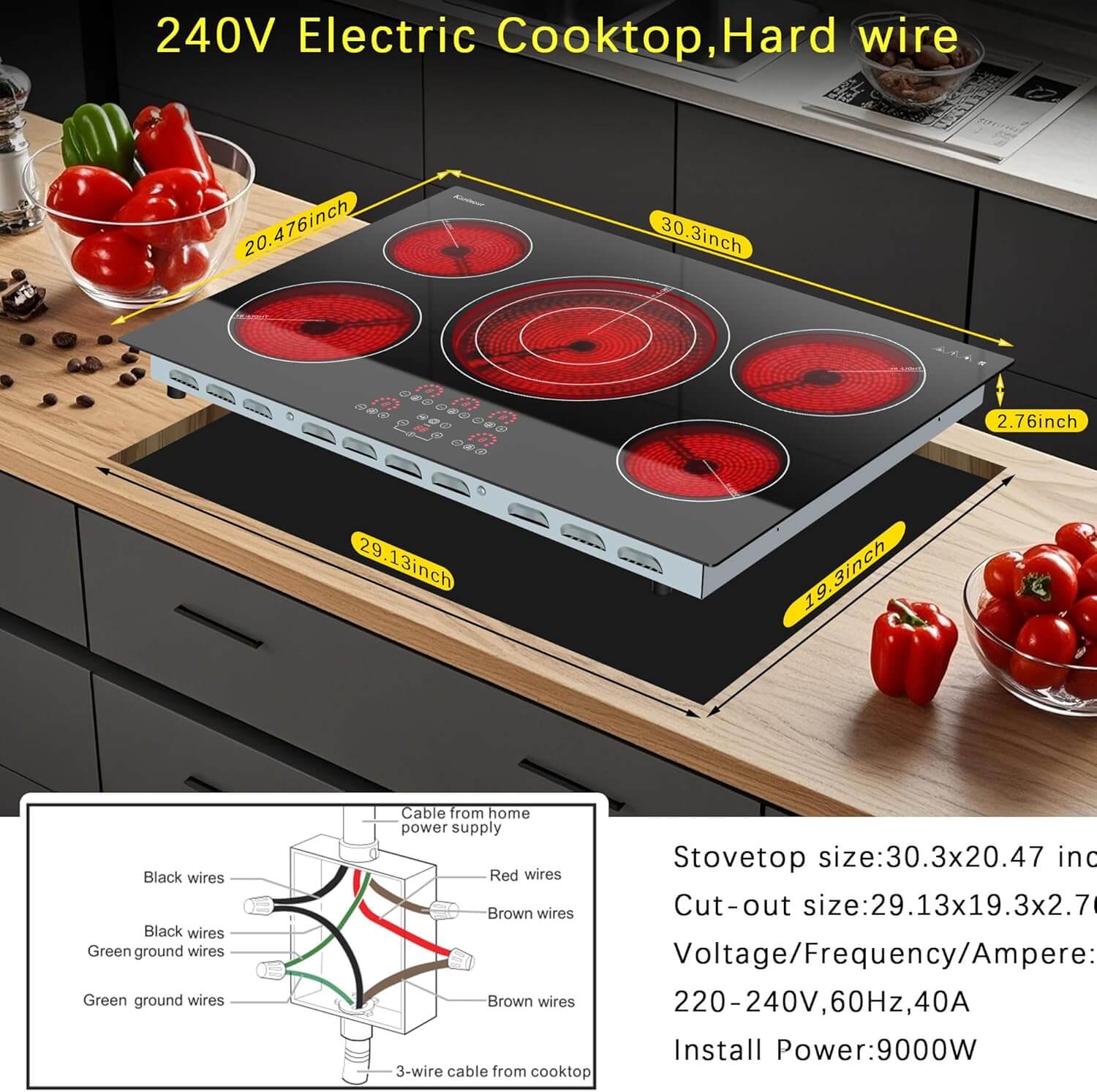

【220V-240V Built-in Electric Cooktop】This high-power 220V-240V electric cooktop, designed for seamless built-in installation with included step-by-step instructions. Note: This 30 inch electric stove requires professional hardwiring (no plug included) for optimal safety and performance. Before purchase, verify the cut-out dimensions (29.13" × 19.29" × 1.73") to ensure a perfect fit in your countertop.
| Product Specifications | |
|---|---|
| Model / SKU | US-KNC-D478119-MB |
| Stovetop Dimensions (L×W×H) | 30.3" × 20.47" × 2.76" (770mm × 520mm × 74mm) |
| Required Cut-out Size (A×B) | Built-in Cutout 29.13" × 19.30" (740mm × 490mm) |
| Installation Type | Built-In / Drop-In (Hardwired Connection) |
| Surface Material | High-Temperature Resistant Black Ceramic Glass Top |
| Total Installed Power | 7800W Max Output High Performance |
| Burner Power & Diameter Breakdown | • Lower Left: 2300W (7.28") • Upper Left: 1600W (7.28") • Lower Right: 1200W (6.50") • Center Triple Ring Zone: 1050W / 1950W / 2700W (5.43" / 9.06" / 11.81") |
| Special Heating Modes | 3900W Flexible Bridge Zone (16.93" × 7.87") Triple Ring Expanding Burner |
| Supply Voltage & Current | 240V~ / 60Hz | 40 Amps |
| Wiring & Plug Requirement |
240V Hardwired Line (NO PLUG) Requires a dedicated 240V / 40A hardwired power supply (3-wire setup). Professional electrician installation recommended. |
| Control System | Precision Sensor Touch Control Panel (9 Power Levels) |

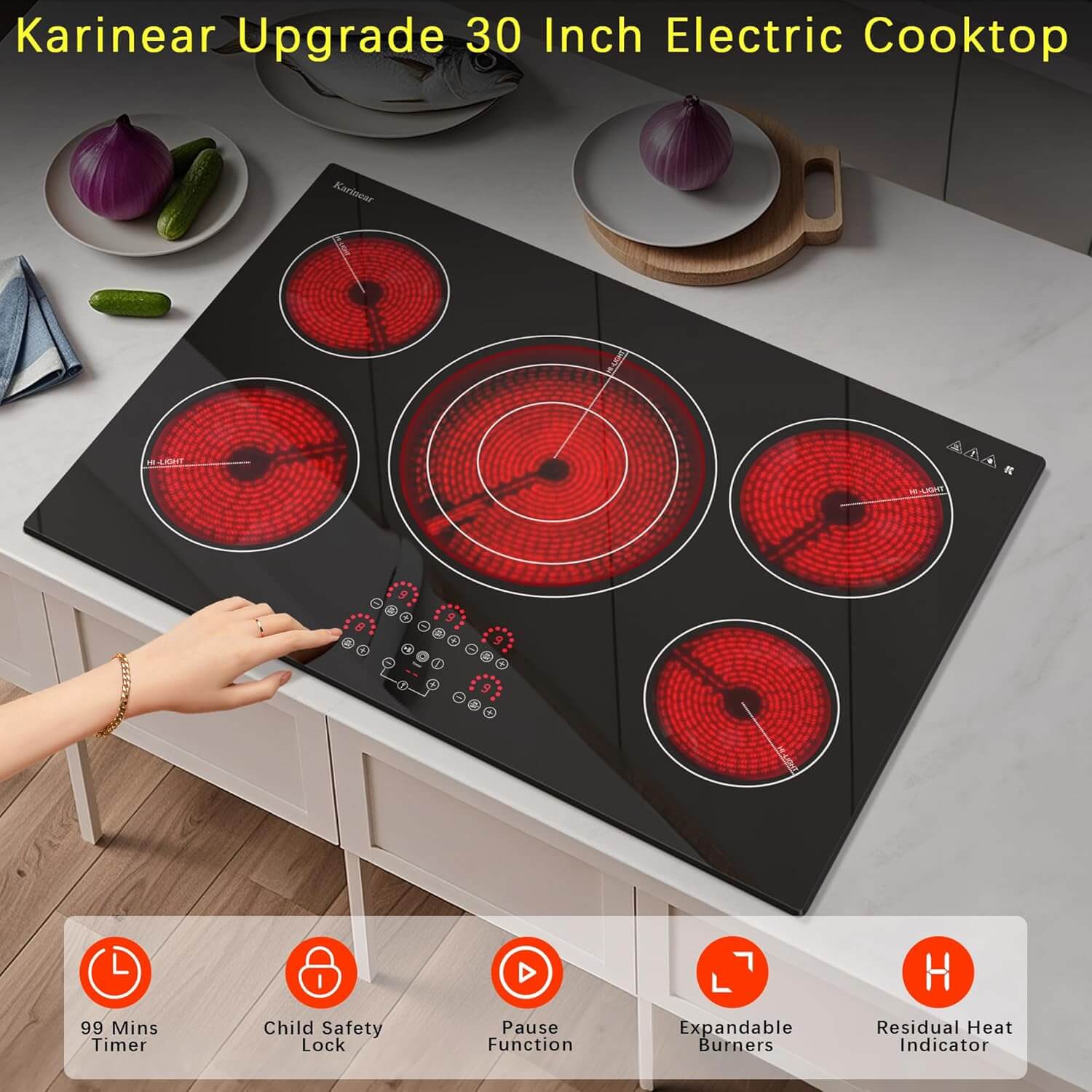

| Convenience Features | 1–99 Min Intelligent Timer One-Touch Pause Function |
| Safety Features | Child Safety Lock Residual Heat Warning ("H") Over-Temperature Protection Auto Shut-Off |

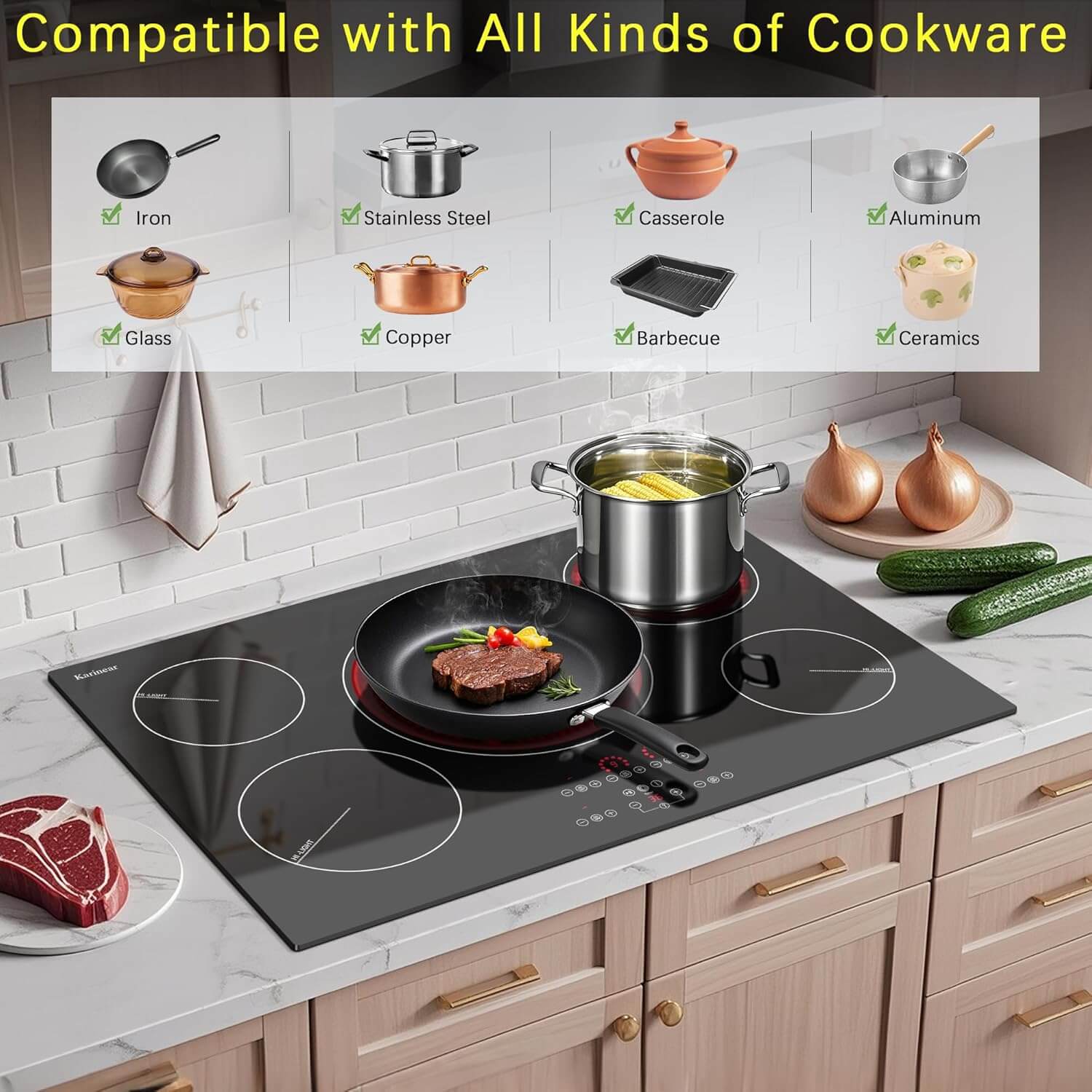

| Cookware Compatibility | Compatible with All Flat-Bottom Cookware (Stainless Steel, Cast Iron, Glass, Ceramic, Copper, Aluminum) |
| Certifications & Warranty | ETL / CE Certified 3-Year Warranty |
1 x 30 inch electric stove top
1 x Instruction manual
1 x Glass Cooktop Scraper
